Caratteristiche

Specificazioni

Condition: New

Product Type: catalyst

Showroom Location: Russia

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Widely used 2021

Warranty of core components: 1 Year

Core Components: Gearbox, Pressure vessel

Warranty: 1 Year

Key Selling Points: professional customized

Applicable Industries: Manufacturing Plant, Energy & Mining, Catalyst production

Name: activated carbon catalyst extruder

Application: zeolite/alumina/molecular sieve/activated carbon extruding

Material: Contact part SUS304

Capacity: 15~2000KG/H

Structure: Double Screw pressing

Power: 2.2~185kw

Extruding length: Customized

Extrudate shape: Trifoil/quadrifoil/cylindrical etc

Extruding method: axial die plate(plastic die or steel)

After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: Pakistan, Russia

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: small size in wooden case

Supply Ability: 100 Set/Sets per Month

Descrizione di prodotto

Products Description

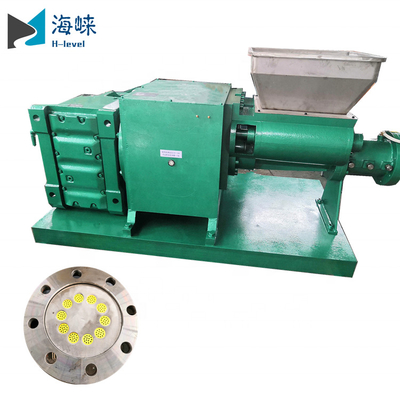

FCC/Molecular sieve catalyst extruders screw catalyst extrudion machine

screw extruder is suitable for material extruding in catalyst, chemical, pharmaceutical, active carbon and food industry. Features: 1. Material auto pressing, avoiding manual operation 2.Strong extruding force , extruded catalyst dia. can be 1mm or bigger 3.Self-cleaning system, can handle sticky material 4.water cooling for the extruder, reducing the possibility of extruding holes blocked due to material high temperature. 5.Auto cut-off protection system which may caused by big screw torque, protecting the machine from being damaged by improper operation or impurities entering the feeding hopper. 6. Frequency control 7.Extruded catalyst cutting device, can cut the catalyst after extruding. Working Principle Material is fed into the hopper, and then pressed onto the rotating screw by a couple of pressing devices in the pressing box (without manual punching). After fed to machine head by the screw, material is extruded through the template. The extruder screw thread is gradually reduced from the back to the front, so that the front end of template has the maximum extruding force, which can ensure the smooth extrusion of the material. The machine is equipped with material breaking screw to prevent material stick onto the screw. Aside from this, there is a groove at the contact part between extruding barrel inner layer and the material along the longitudinal direction of the extruding barrel, which can prevent the material from slipping. When the extruder is running, the extruding barrel will become hot due to the friction, the closer to the template, the hotter the barrel is, and can even carbonize the material, and result in overload of converter. To avoid the above phenomena, the extruding barrel is equipped with circulating water cooling system which has a good cooling efficiency. Application: Catalyst, molecular sieve, activated carbon, rare earth, chemical, medicine, food etc extruding process.

Detailed Images

Size Information

model	DJ-40	DJ-100	DJ-127	DJ-152	DJ-200	DJ-300
Screw dia.	Φ42	Φ102	Φ125	Φ152	Φ202	Φ302
Min. strip dia.	≥0.85	≥0.85	≥0.85	≥0.85	≥1.0	≥1.0
Power kw	2.2 kw	11.22 kw	30~37 kw	45~55 kw	75~110 kw	185 kw
Capacity kg / h	15~30	110~220	180~300	210~410	310~610	1000-2000
Weight (kg)	75	1200	2400	3000	4500	12500
Speed adjusting mode	Frequency Control	Frequency Control	Frequency Control	Frequency Control	Frequency Control	Frequency Control
Cut-off power		0.25	0.37	0.37	0.55	0.55
Cooling mode	Extruding barrel cooling	Extruding barrel cooling	Extruding barrel screw cooling	Extruding barrel screw cooling	Extruding barrel screw cooling	Extruding barrel screw cooling
Speed range	0~80	0~42	0~42	0~51	0~51	0~51

FAQ

1.What is the extruder mainly for? It is mainly for extruding the paste of alumina, zeolite,activated carbon catalyst ect.

2.What is the capacity? The machine size ranges from lab scale to commercial, can handle 1kg to 300kg per hour.

3.What size to be extruded? The size will be according to the user requirement

4.What the extruding method? The twin screw will press the wet paste in to required pellet size by the twin screw.
